Cryogenic Forged Steel Valves: Meeting the Demands of Low-Temperature Applications

  • Release time：2024-11-23
  • Collect
  • Views：317
  • Share to：

1. Introduction

Cryogenic forged steel valves are specifically engineered to handle the unique demands of low-temperature applications. They are an essential component in systems where the precise control of fluid flow is critical, even under extreme cold conditions. The design and construction of these valves are governed by strict standards to ensure their reliability and performance.

2. Design and Construction

2.1 Valve Body and Bonnet

The valve body and bonnet of cryogenic forged steel valves are typically made from high-quality forged steel materials. This forging process enhances the mechanical properties of the metal, providing excellent strength and durability, especially at low temperatures. The use of forged steel also helps in minimizing the risk of embrittlement, which is a common concern in cryogenic applications.

2.2 Sealing Mechanisms



The valve body and bonnet of cryogenic forged steel valves are typically made from high-quality forged steel materials. This forging process enhances the mechanical properties of the metal, providing excellent strength and durability, especially at low temperatures. The use of forged steel also helps in minimizing the risk of embrittlement, which is a common concern in cryogenic applications.


2.2 Sealing Mechanisms

To achieve reliable sealing in cryogenic conditions, these valves employ advanced sealing technologies. The valve seats are often made from materials that can maintain their flexibility and sealing properties at low temperatures, such as PTFE or other suitable polymers. Additionally, the valve stem packing is designed to prevent any leakage of the fluid being controlled, ensuring the integrity of the system.

2.3 Extended Bonnet

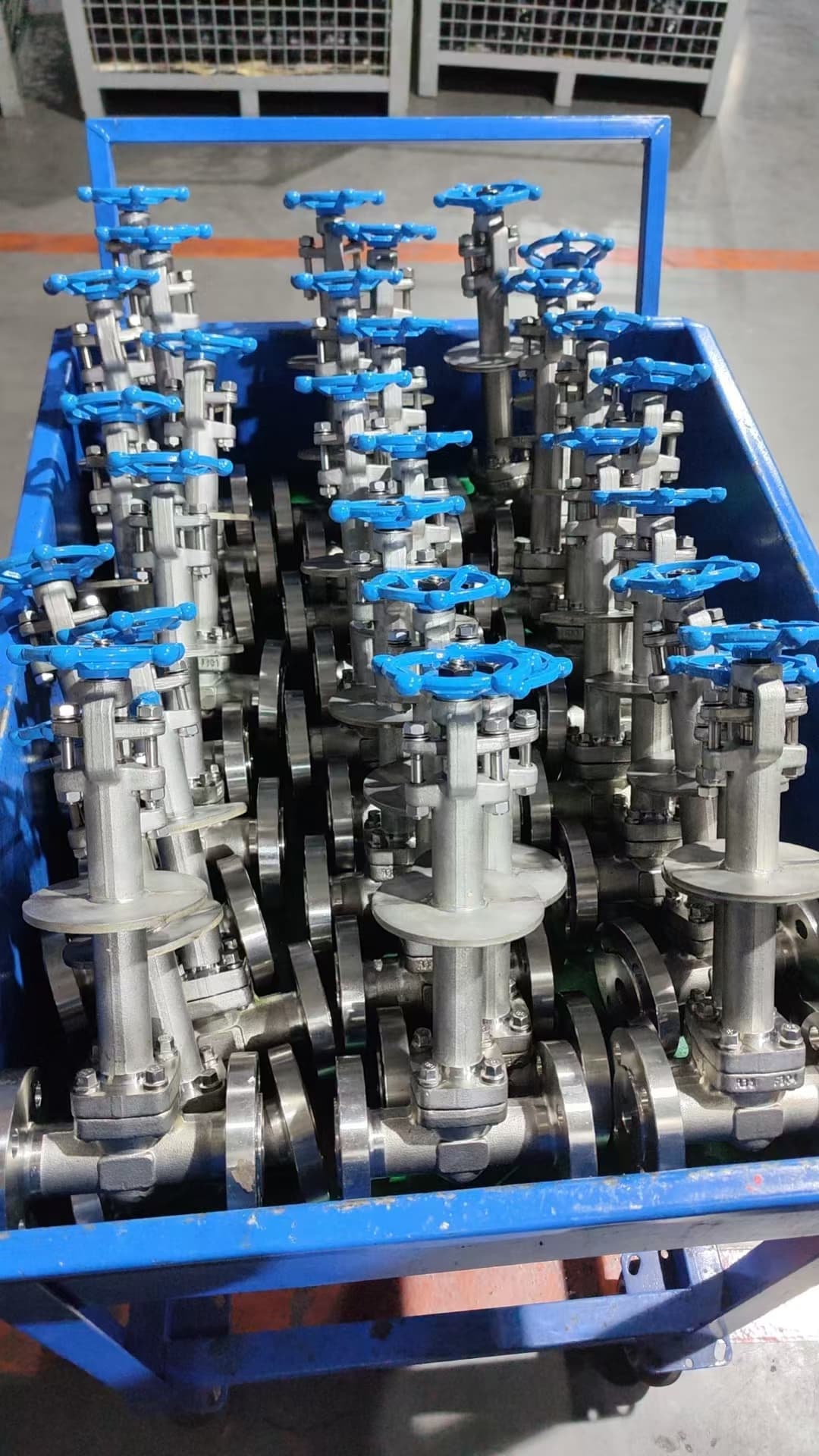

Many cryogenic valves feature an extended bonnet design. This is to protect the valve stem and internal components from the cold temperature and to prevent the formation of ice or frost, which could affect the valve's operation. The length of the extended bonnet is carefully calculated based on the temperature requirements and the overall valve design.

3. Material Selection

3.1 Forged Steel Grades

The choice of forged steel grade is crucial for the performance of cryogenic valves. Materials such as ASTM A350 LF2 or ASTM A182 F316 are commonly used due to their ability to maintain good mechanical properties and resistance to corrosion at low temperatures. These grades offer a balance between strength and toughness, which is essential for withstanding the thermal stresses and pressure differentials in cryogenic systems.

3.2 Non-Metallic Components

In addition to the metal components, non-metallic materials used in the valve, such as gaskets and seals, are also carefully selected. They need to be compatible with the cryogenic fluid and the operating conditions. For example, the gaskets may be made from materials that can withstand the extreme cold without becoming brittle and losing their sealing effectiveness.

4. Testing and Quality Assurance

4.1 Cryogenic Performance Testing

Before being put into service, cryogenic forged steel valves undergo rigorous testing to ensure their performance at low temperatures. This includes testing for leak tightness, pressure resistance, and operability in a cryogenic environment. The valves are immersed in liquid nitrogen or other suitable cryogenic fluids to simulate actual operating conditions.

4.2 Quality Standards and Certifications

These valves are manufactured in accordance with international standards such as the MESC SPE 77/200. Compliance with such standards ensures that the valves meet the required quality and performance levels. Manufacturers often obtain certifications to demonstrate their commitment to quality and to provide assurance to customers.

5. Applications

5.1 LNG Industry

In the LNG industry, cryogenic valves are used in various stages of the liquefaction, storage, and transportation processes. They are essential for controlling the flow of LNG, which is stored and transported at extremely low temperatures. The reliable operation of these valves is crucial for the safety and efficiency of LNG facilities.

5.2 Cryogenic Storage and Distribution

Cryogenic storage tanks and distribution systems for gases such as oxygen, nitrogen, and argon also rely on these valves. They ensure the accurate and safe transfer of cryogenic fluids from the storage tanks to the end-users.

6. Installation and Maintenance

6.1 Installation Guidelines

Proper installation of cryogenic forged steel valves is essential for their optimal performance. Installation should be carried out by trained personnel following the manufacturer's instructions. This includes ensuring the correct alignment of the valve, proper connection to the piping system, and the use of suitable insulation to minimize heat transfer.

6.2 Maintenance Requirements

Regular maintenance is necessary to keep the valves in good working condition. This involves inspection for any signs of leakage, wear, or damage. The valve seals and packing may need to be replaced periodically, and the valve operation should be checked to ensure smooth and accurate control of fluid flow.

7. Conclusion

Cryogenic forged steel valves are a vital component in industries that operate in low-temperature environments. Their precise design, high-quality materials, and strict testing procedures ensure reliable performance and contribute to the overall safety and efficiency of cryogenic systems. As technology continues to advance, these valves will continue to evolve to meet the ever-increasing demands of modern industrial applications.
Keywords: Cryogenic Forged Steel Valves, Low-Temperature Applications, Valve Design, Material Selection, Testing and Quality Assurance, LNG Industry, Installation and Maintenance.
